Hardware Demo

Hardware Demo is the interactive/static demo route for ShoddyHub hardware work. The LL8 OBD2 emulator sits alongside the demo as the editable feed source, while the ShoddyTune-facing simulation shows what that feed drives.

This page is the preview surface, not the architecture plan or policy lane. It is intentionally web-facing and lightweight so visitors can understand native OBD, AppBridge, and remote handoff concepts without touching live vehicle-side write paths.

Run Demo in Page Open Full Demo Hardware Architecture
In-site preview route LL8-first context Safety-gated direction Webasset-ready lane

Where this page fits

The demo stays focused on interaction and static preview behavior while the adjacent pages carry architecture, umbrella routing, and repair posture.

ShoddyHub

Umbrella hardware/product lane for product direction, validation posture, and companion app routing.

Open ShoddyHub

Hardware

Architecture and hardware plan for host platforms, interface tiers, write-path safety gates, and bench validation.

Open Hardware

Hardware Demo

Interactive/static demo showing telemetry context, table operations, and simulated feed behavior without live write paths.

Open Demo

Right to Repair

Philosophy, scope, and policy lane for owner visibility, diagnostics access, and cautious Atlas-family boundaries.

Open Right to Repair

Emulator feed and interactive simulation

The LL8 emulator profile is the source layer. The embedded demo consumes the static feed and shows the resulting telemetry, analysis, table, recommendation, and setup surfaces.

Loading simulation...
Telemetry snapshot panel with key metrics and trend preview graph.

Telemetry snapshot

Runtime metrics and trend context prove the preview can support quick confidence checks.

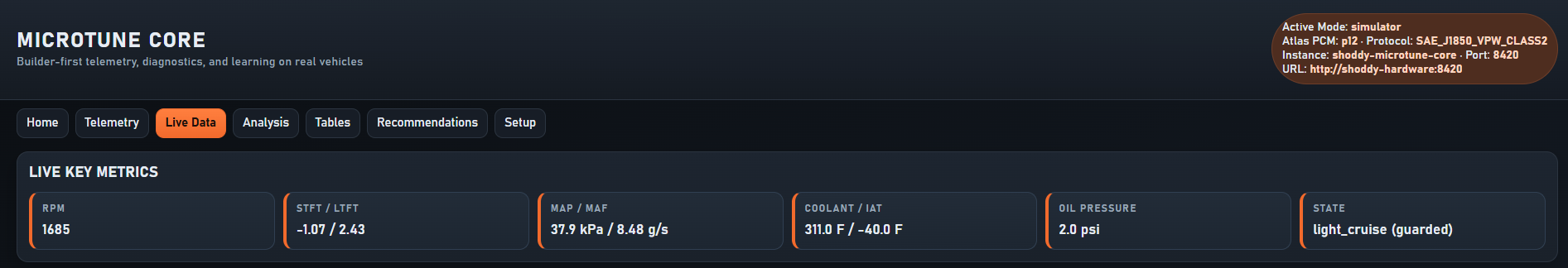

Live data metrics screen with RPM, trims, map and oil pressure.

Live data metrics

Streaming values stay visible beside simulator state so testers can see what the feed is proving.

Table operations screen with map editing controls and operation actions.

Table operations

Map-level controls show the workflow framing that has to stay guarded before real write paths exist.

Heatmap analysis table with correction magnitude colors.

Heatmap analysis

Correction-direction color makes table behavior easier to review without reading every cell manually.

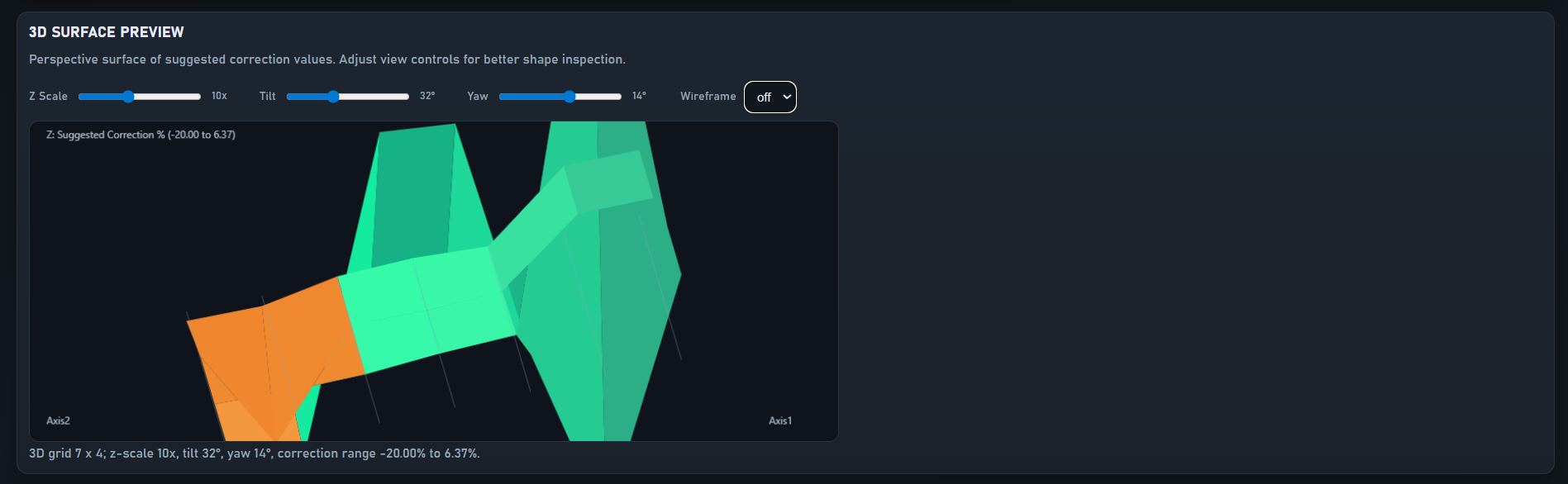

3D surface preview for correction map inspection.

3D surface preview

Surface preview gives shape-level inspection so table behavior is easier to understand at a glance.

Setup screen showing run mode, PCM family, replay path, and save controls.

Setup and run mode

Run-mode configuration keeps profile choice, replay source, and safety context in one lane.
